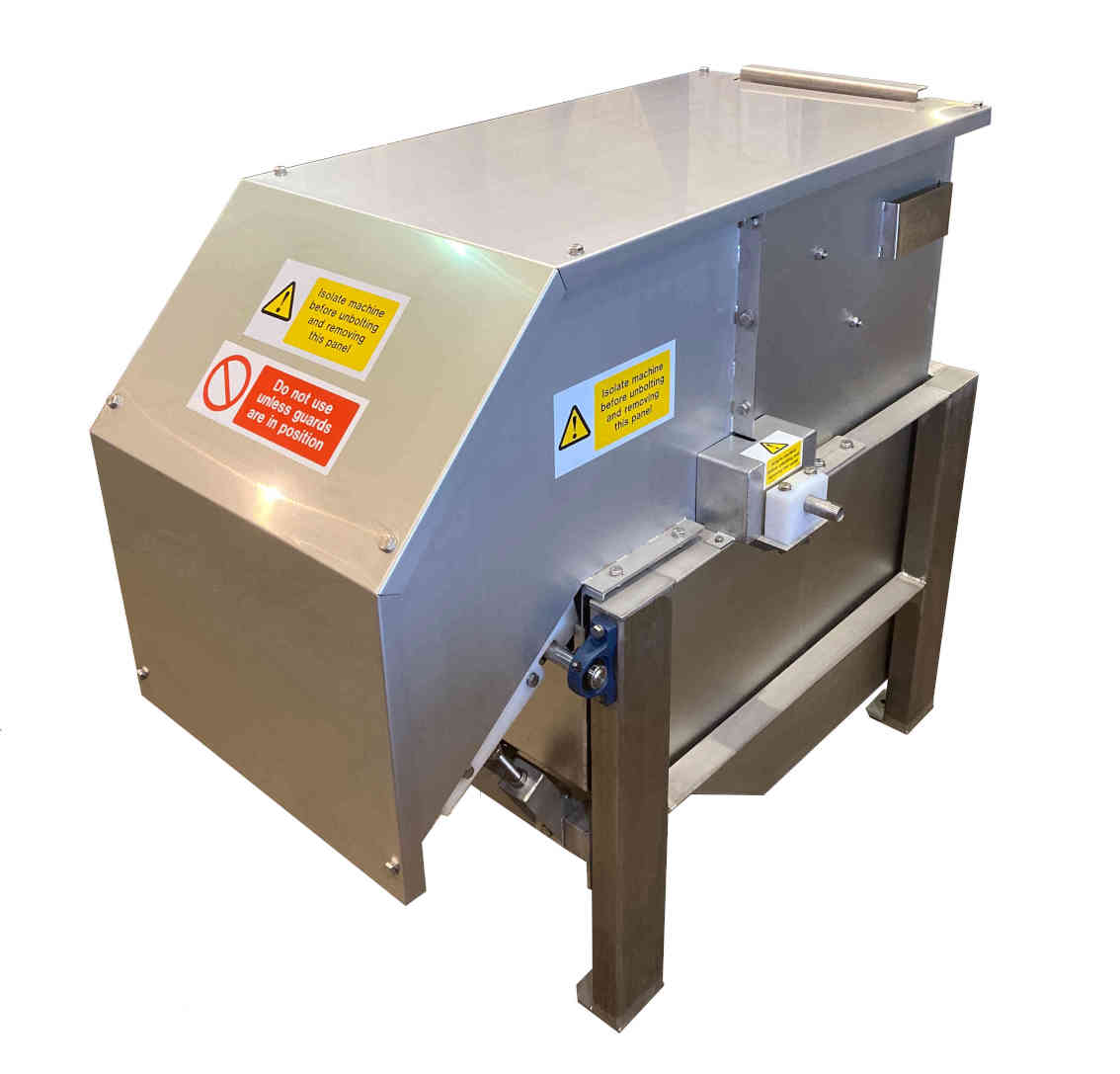

Optima have an extensive range of externally fed rotary drum screen sizes which we market under our Clearotex range. The Clearotex machine consists of a rotating spirally wound wedge wire drum with apertures starting from 0.10mm up to 10mm.

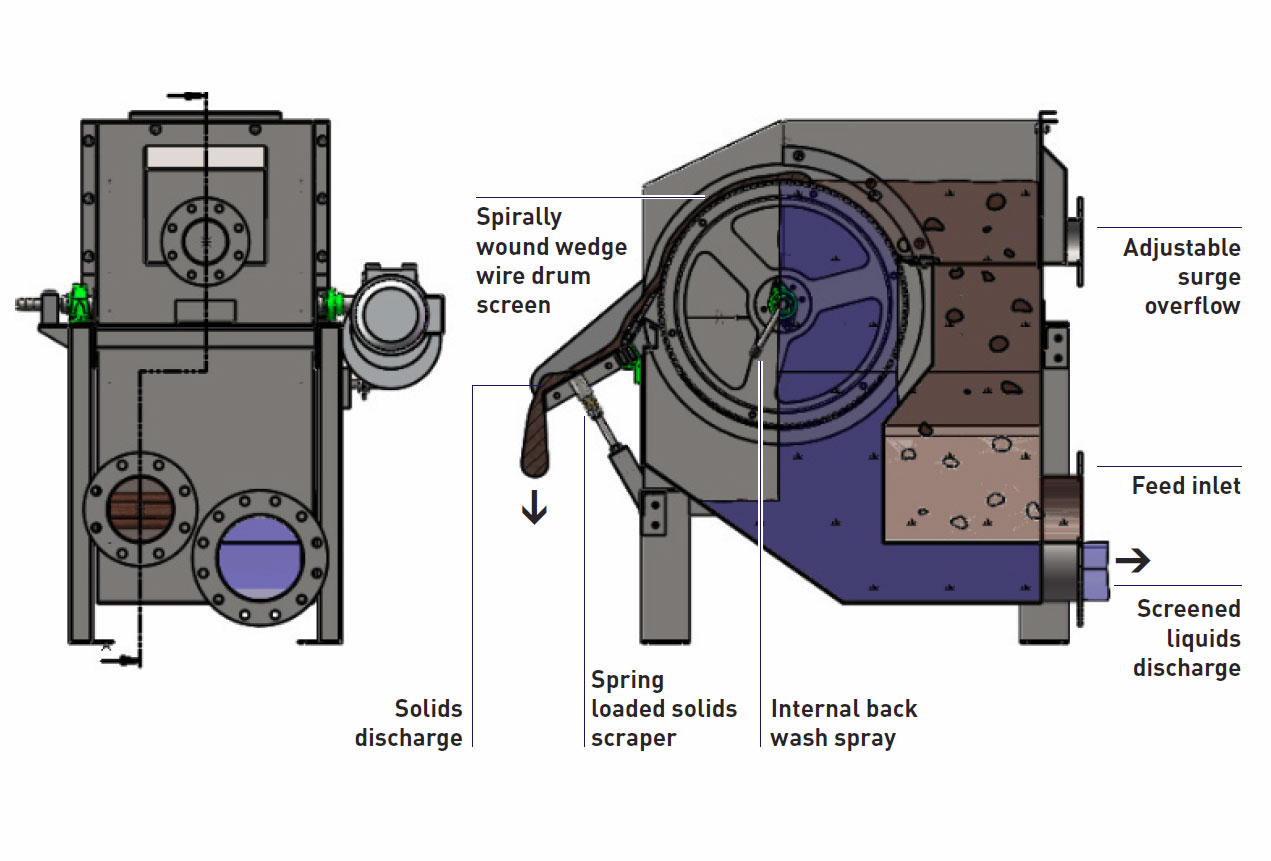

This product is used for fine solid / water separation which consist of floating or buoyant particles that need to be removed from the effluent. The particles are separated by sticking to the rotating drum which are then scraped from the surface of the wedge wire drum with a spring-loaded scraper blade. The solids then discharge into a skip or other machinery for further treatment.
The screened liquid however travels through the drum to the outlet passing through the drum twice which cleanses the drum before leaving through the liquid outlet at the bottom of the machine.
The Clearotex externally fed rotary drum screen also has a pressurised water spraying system within the drum to help keep the drum clean and avoid clogging.
All CX machines, are supplied with comprehensive guarding to meet the machinery directive.
The guards also prevent vermin from accessing separated solid waste making the CX machine a great solution for internal and external use.
Fitted as standard throughout the CX range is an external scraper that removes solid waste from the filter drum.

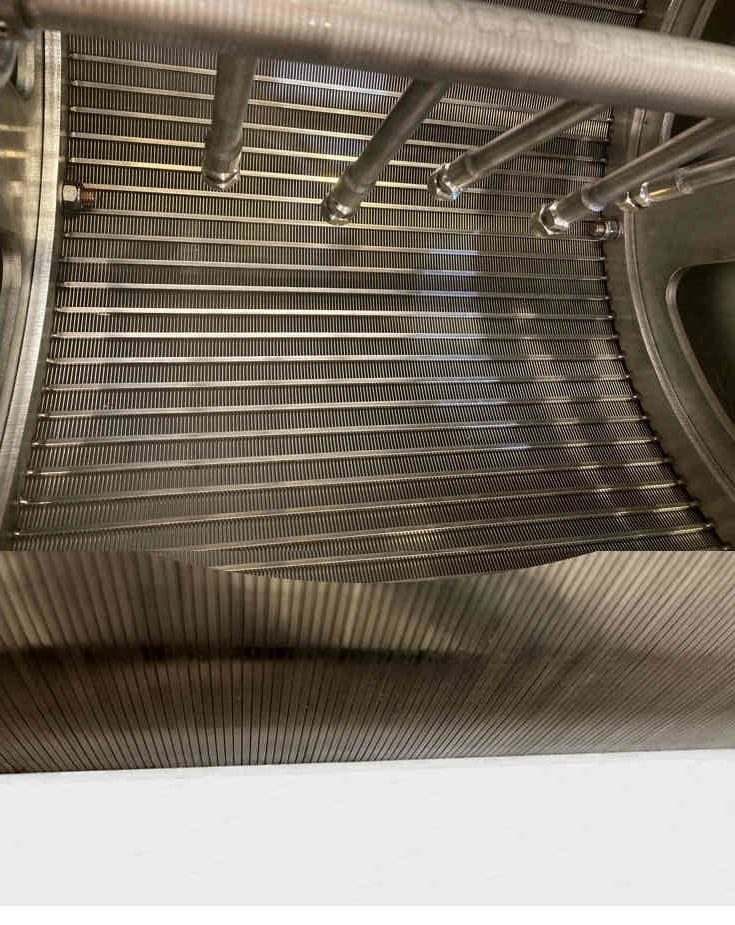

Also fitted as standard, is an internal spray bar that periodically performs a cleaning cycle to clean the filter drum apertures/slots.
